HB Series Heavy-Duty Industrial Gearbox

Compatible with Flender B & H series

Brand compatibilityFlender BFlender H

CHINFAR HB series heavy-duty industrial gearbox: parallel-shaft and right-angle helical-bevel configurations. Output torque up to 800 kNm. Dimensional compatibility with Flender B/H series. ATEX-certified options. For cement, steel, mining, and marine applications.

HB Series Heavy-Duty Industrial Gearbox — heavy-duty industrial gearbox compatible with Flender B/H series

Overview

CHINFAR HB series heavy-duty industrial gearbox: parallel-shaft and right-angle helical-bevel configurations. Output torque up to 800 kNm. Dimensional compatibility with Flender B/H series. ATEX-certified options. For cement, steel, mining, and marine applications. The series is engineered for industrial gearboxes applications and can be configured for standard or customized delivery based on operating parameters.

Key features

  • Modular construction with multiple mounting options
  • Hardened-tooth gearing (per series)
  • Multiple input and output configurations
  • Motor matching available per application
  • OEM nameplate on confirmed scope
  • Non-standard configuration subject to technical review

Why Choose Our HB Series?

When compared with traditional worm gearboxes, our HB Series helical series delivers superior efficiency, longer service life, and better reliability.

Compared with Traditional Worm Gearbox

ParameterHB SeriesTraditional Worm
Efficiency95–98%40–70%
Service Life15–20 years5–10 years
Power DensityHighLow
Back-drivingRequires brakeSelf-locking (limited)
Noise LevelLower (~65 dB)Higher (~75 dB)

Data based on CHENGFA engineering records. Actual performance may vary with operating conditions.

Technical specifications

Full selection tables are available on request.

Typical applications

  • Belt conveyors
  • Bucket elevators
  • Mining and cement drives
  • Mixers and mills
Plastic ExtrusionMixing EquipmentMining & Conveying

Related series

Technical resources

Product gallery

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #1

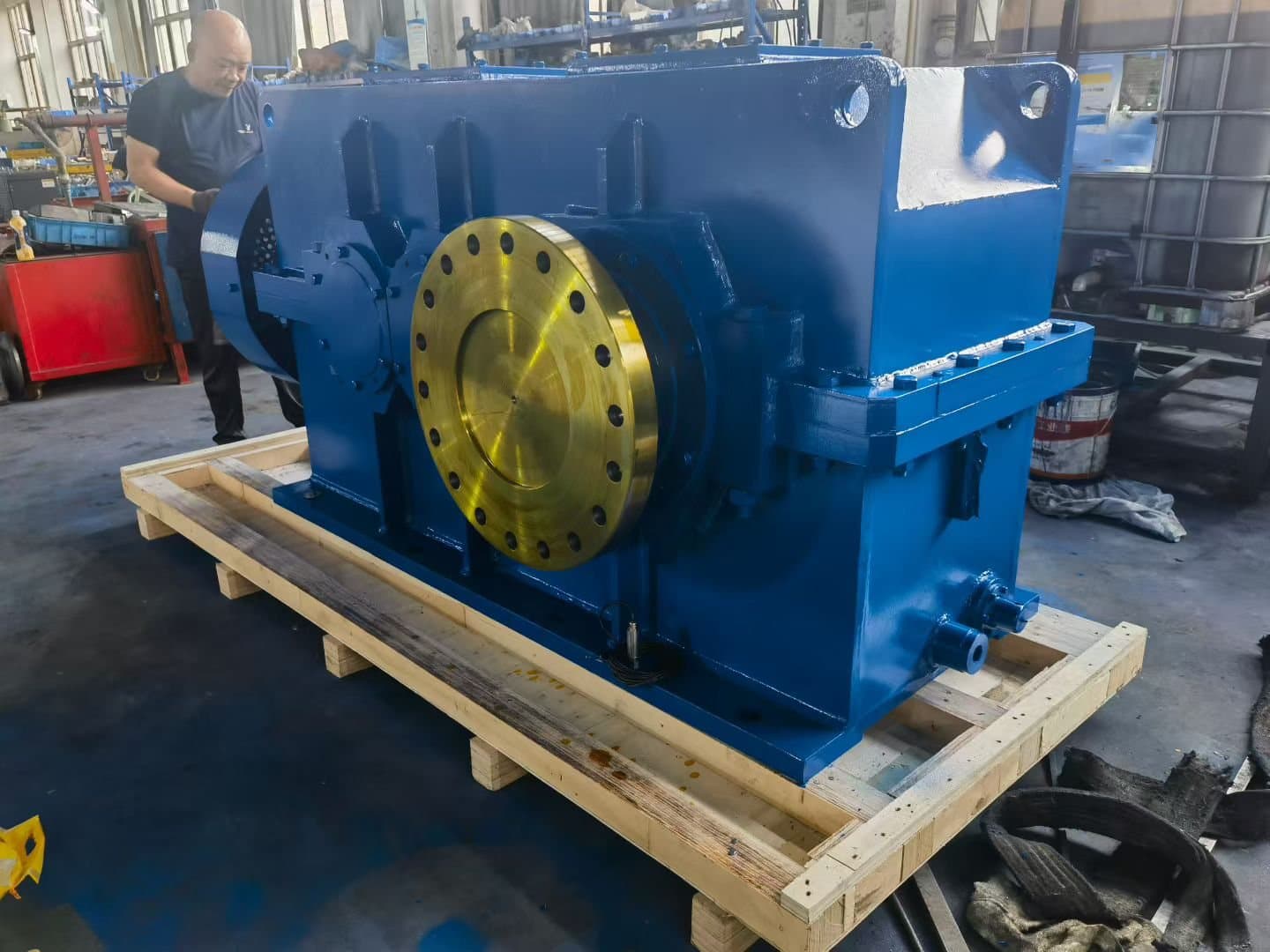

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #2

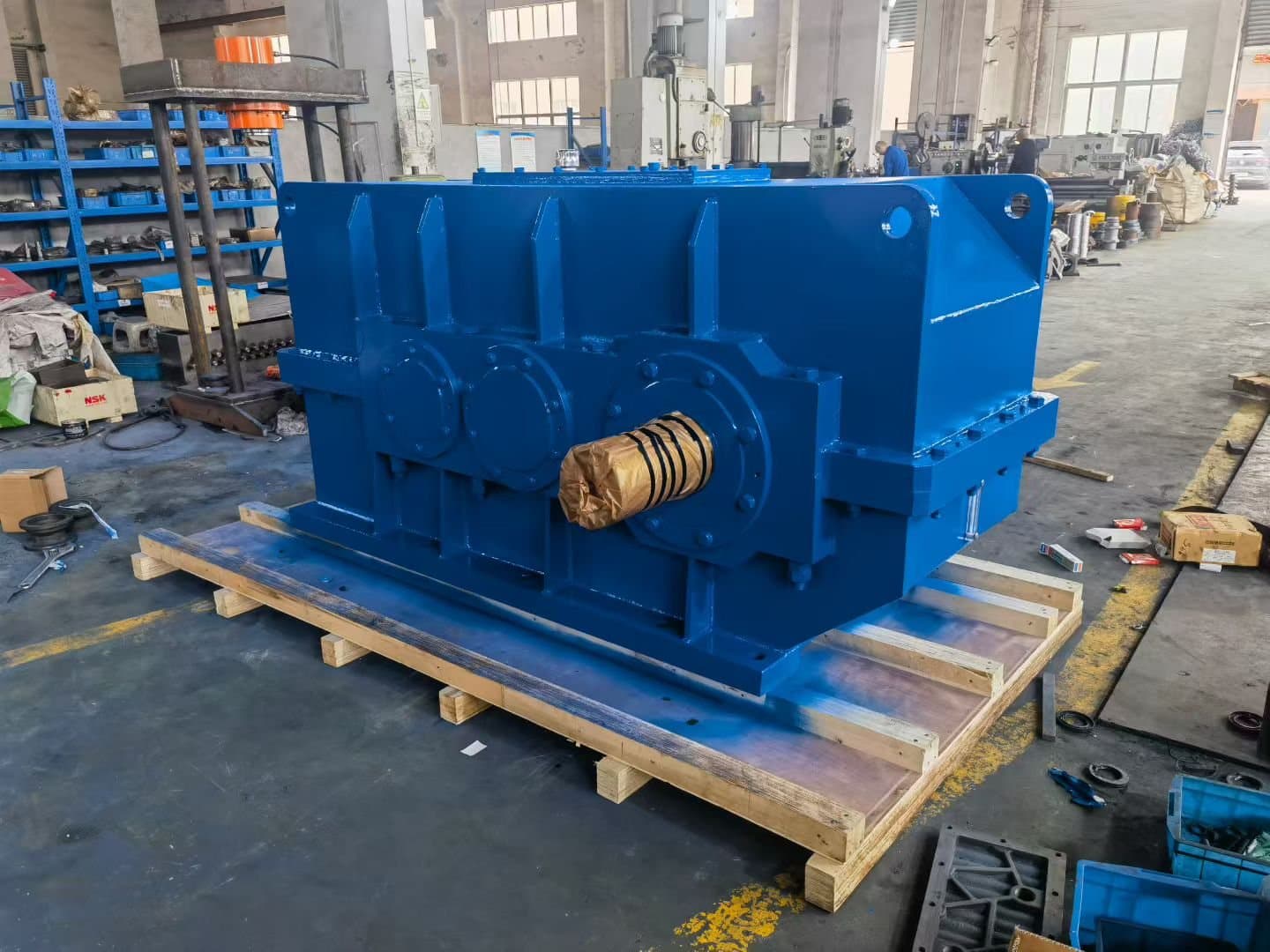

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #3

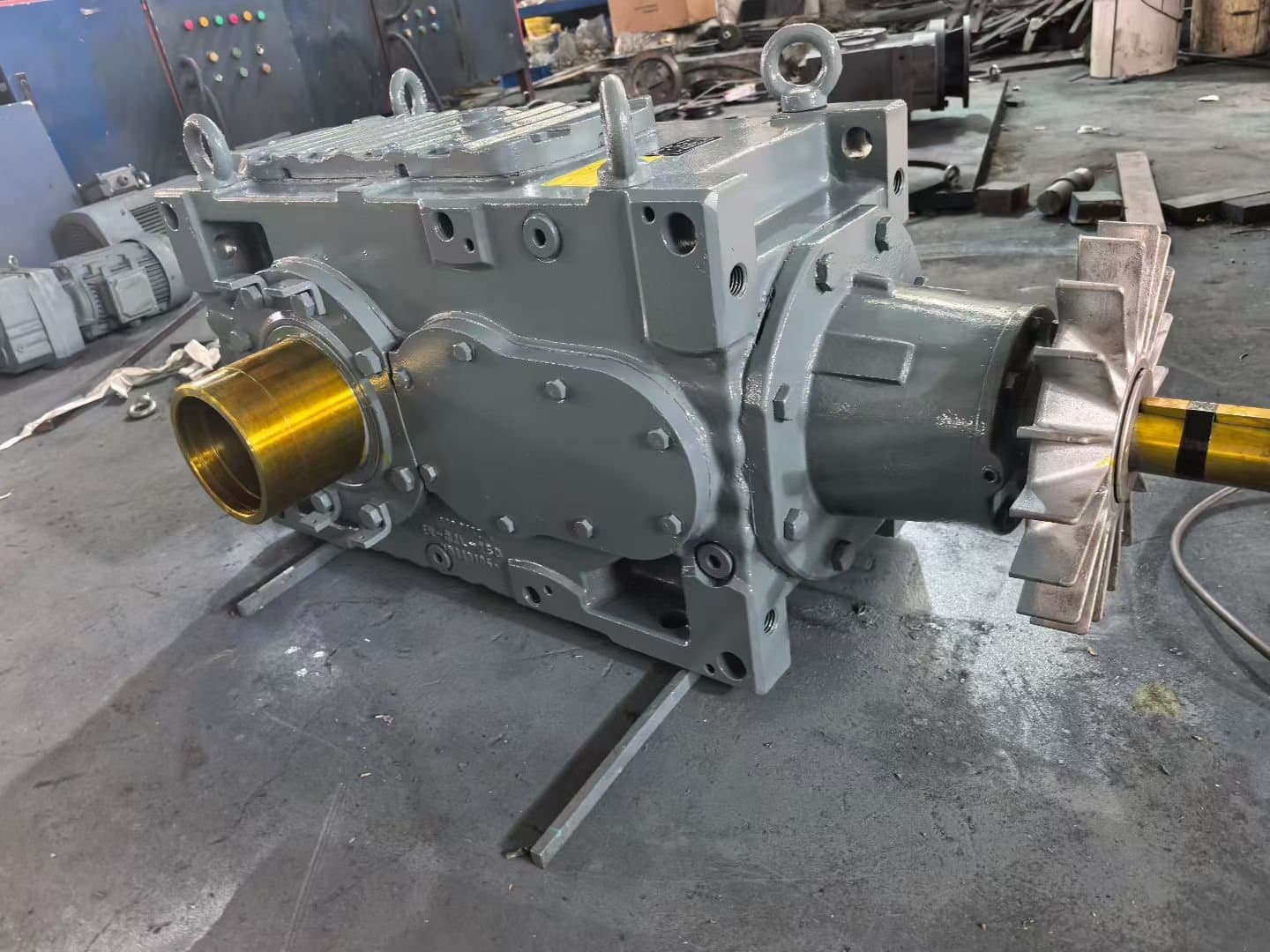

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #4

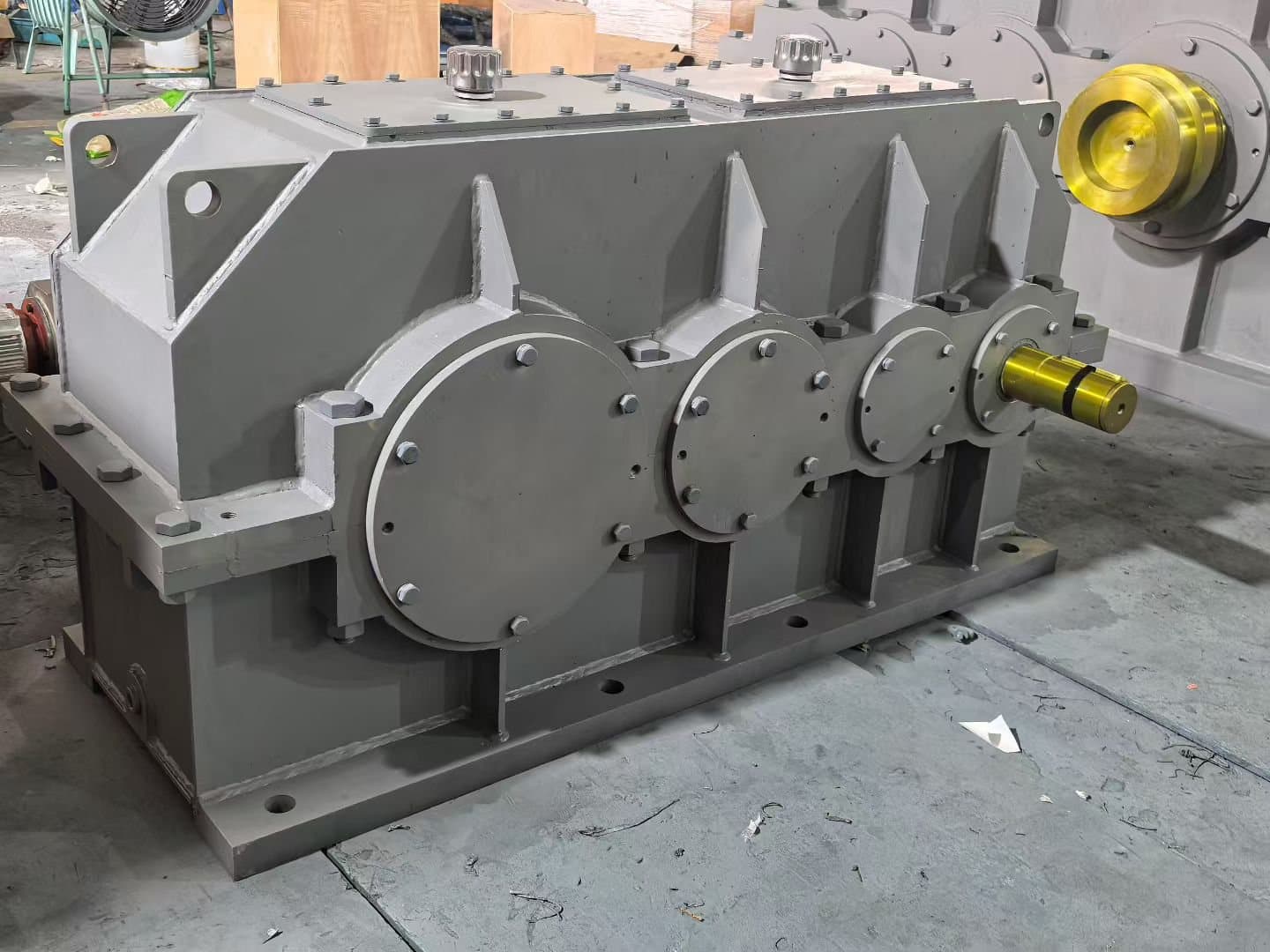

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #5

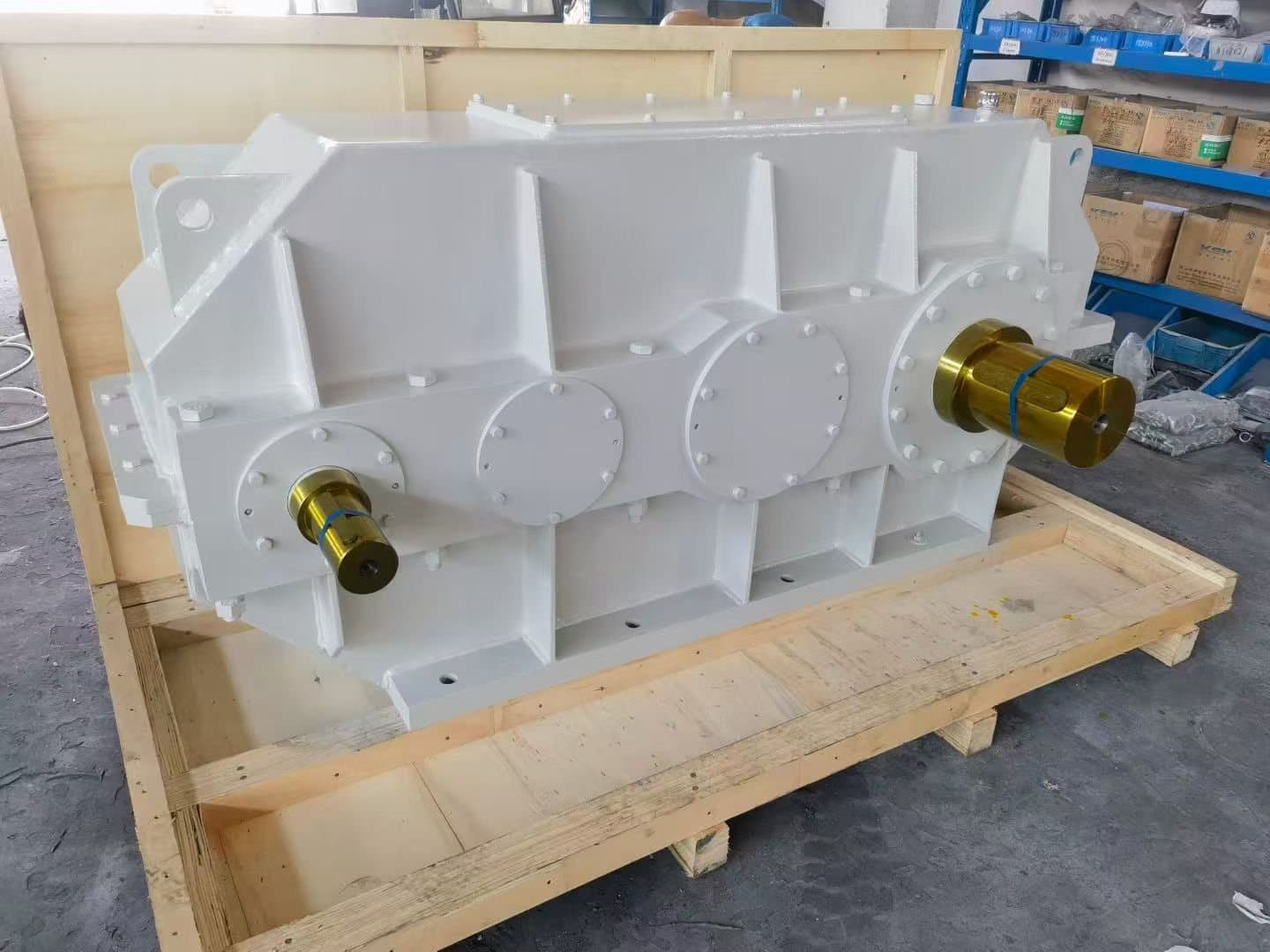

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #6

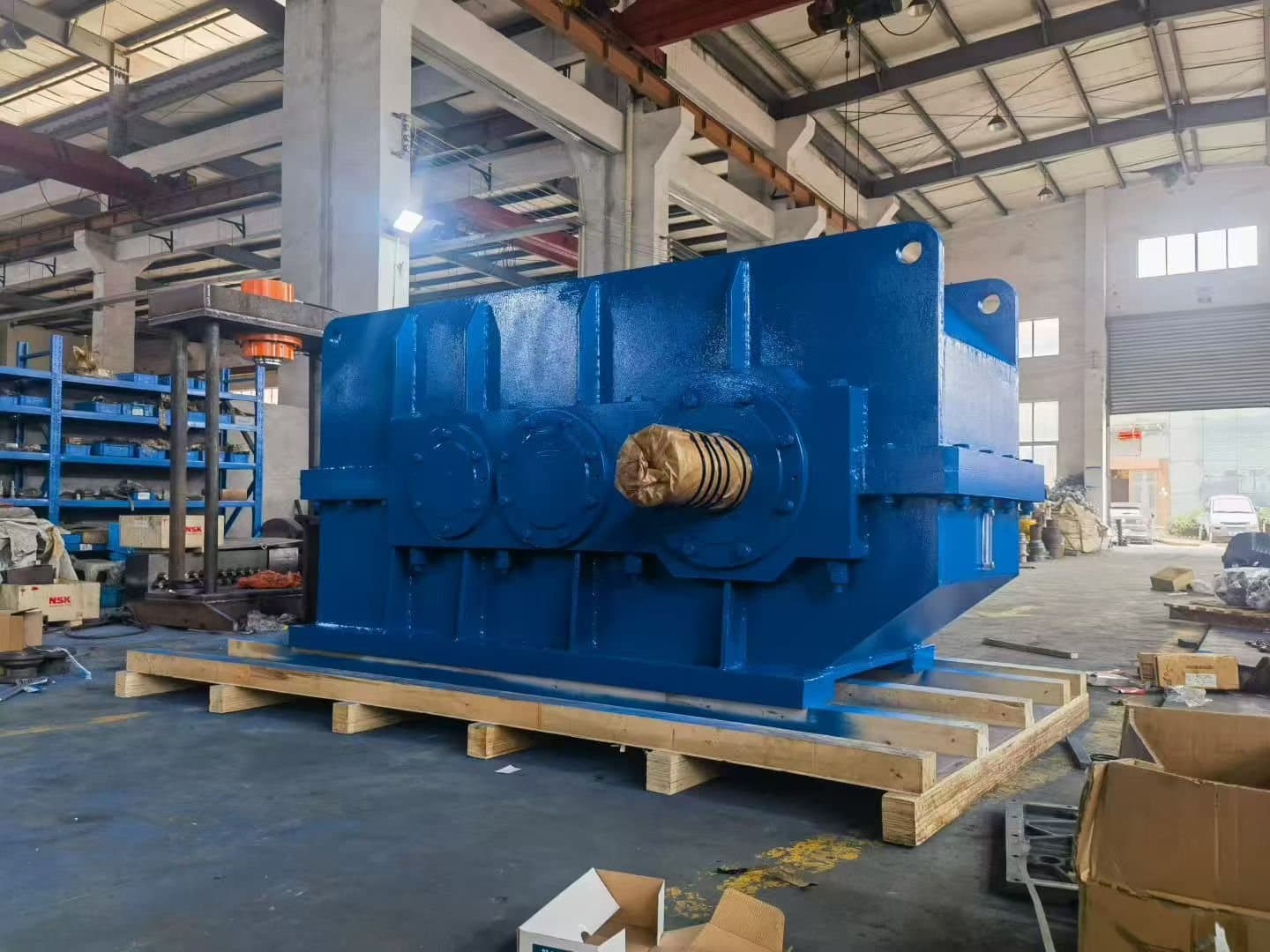

HB Series — heavy-duty industrial gearbox compatible with Flender B/H series #7

HB Series — FAQ

Is your series interchangeable with SEW, Bonfiglioli or Dodge?
In many cases yes — our modular helical/worm/bevel designs can match envelope dimensions and mounting foot patterns of major European and American brands. Please provide the competitor model number, nameplate photo and mounting drawing, and our engineering team will perform a fit-check and confirm.
What is the typical delivery time for standard and custom configurations?
Standard R/F/K/S modular geared motors usually ship within 7–15 working days after order confirmation. Custom configurations, special housings or non-standard shaft dimensions require additional lead time that we confirm during technical review. ZLYJ extruder gearboxes and HB/P industrial gearboxes require engineering sizing and confirmation.
Do you support OEM nameplates, colors, packaging and shaft modifications?
Yes. We support OEM production including custom nameplates, brand colors, shaft extensions, special packaging and document packages. All OEM modifications are subject to technical approval and a confirmed order scope — minimum order quantities apply for non-standard options.
What is the safe inspection sequence when a geared motor overheats?
First determine whether the heat is accompanied by abnormal noise, vibration, oil leakage, burning smell or unusual current. Then check load, start frequency, lubrication, alignment, ambient conditions and the motor electrical state. Stop the machine immediately if there is smoke, violent noise or rapidly uncontrolled heating, and isolate power before inspecting oil, couplings or belts. Send the nameplate, running video, current, load, ambient temperature and lubricant record to sales@chinfar.com for remote review.
What should be checked during the first run of a new gearbox installation?
Before first run, confirm mounting is rigid and aligned, oil level matches the specified grade, breather/vent is unobstructed, coupling or belt tension is correct, electrical supply matches the nameplate, and the direction of rotation is verified at no-load. Run unloaded for 30–60 minutes and check temperature rise, vibration and noise before applying full load.
What data should I provide when requesting a quote for an extruder gearbox?
Provide screw diameter, drive power, input speed, required output speed, output torque, axial thrust load, duty cycle, lubrication preference (oil-bath or forced), cooling method (natural or fan-cooled) and the mounting interface drawing. Photos of the existing gearbox nameplate and the drive-end layout help confirm matching.
What is the warranty period and what does it cover?
Standard warranty is 12 months from the date of shipment or per the contract terms. The warranty covers manufacturing defects and material failures under normal operating conditions. It does not cover wear parts, damage from overload, improper installation, lack of maintenance, or operation outside the agreed specification. Warranty claims require the nameplate, operating records and a description of the issue.
What replacement data should I send when retrofitting an existing gearbox?
Send the nameplate (or a clear photo), existing mounting dimensions, shaft diameter and length, input/output shaft orientation, duty cycle and load profile. For agitator applications, include the medium, viscosity, impeller, shaft length and sealing conditions. For lifting and industrial gearboxes, include load, travel, speed, synchronization and safety requirements. Photos from multiple angles help confirm the interface without ambiguity.

Don't have clear photos or drawings? No worries. Just tell us your application, power range, and ratio — we'll handle the rest.

Need selection support for this series?

Provide the application, motor power, input speed, required output speed, torque, mounting arrangement and quantity — we will review and recommend a suitable configuration.
