Extruder Gearboxes · HUIGUANG

ZLYJ Series Extruder Gearbox

Compatible with SPG, Toshiba Carbotech & Kuhl

Brand compatibilitySPG-Steyr PackertToshiba CarbotechKuhl

CHINFAR ZLYJ extruder gearbox for single-screw plastic and rubber extrusion: thrust capacity 50-800 kN, screw diameters 45-250 mm. Dimensional compatibility with SPG-Steyr Packert, Toshiba Carbotech, and Kuhl extruder gearbox standards. Forced lubrication and high-temperature options.

ZLYJ Series Extruder Gearbox — single-screw extruder gearbox compatible with SPG and Toshiba Carbotech

Overview

CHINFAR ZLYJ extruder gearbox for single-screw plastic and rubber extrusion: thrust capacity 50-800 kN, screw diameters 45-250 mm. Dimensional compatibility with SPG-Steyr Packert, Toshiba Carbotech, and Kuhl extruder gearbox standards. Forced lubrication and high-temperature options. The series is engineered for extruder gearboxes applications and can be configured for standard or customized delivery based on operating parameters.

Key features

  • Modular construction with multiple mounting options
  • Hardened-tooth gearing (per series)
  • Multiple input and output configurations
  • Motor matching available per application
  • OEM nameplate on confirmed scope
  • Non-standard configuration subject to technical review

Why Choose Our ZLYJ Series?

When compared with traditional worm gearboxes, our ZLYJ Series helical series delivers superior efficiency, longer service life, and better reliability.

Compared with Traditional Worm Gearbox

ParameterZLYJ SeriesTraditional Worm
Efficiency95–98%40–70%
Service Life15–20 years5–10 years
Power DensityHighLow
Back-drivingRequires brakeSelf-locking (limited)
Noise LevelLower (~65 dB)Higher (~75 dB)

Data based on CHENGFA engineering records. Actual performance may vary with operating conditions.

Technical specifications

Full selection tables are available on request.

Model range

Detailed selection data is available from the technical team.

  • ZLYJ133
  • ZLYJ173
  • ZLYJ200
  • ZLYJ225
  • ZLYJ250

Typical applications

  • Single-screw plastic extrusion
  • Rubber extrusion lines
  • Extruder drive replacement
Plastic Extrusion

Related series

Technical resources

Product gallery

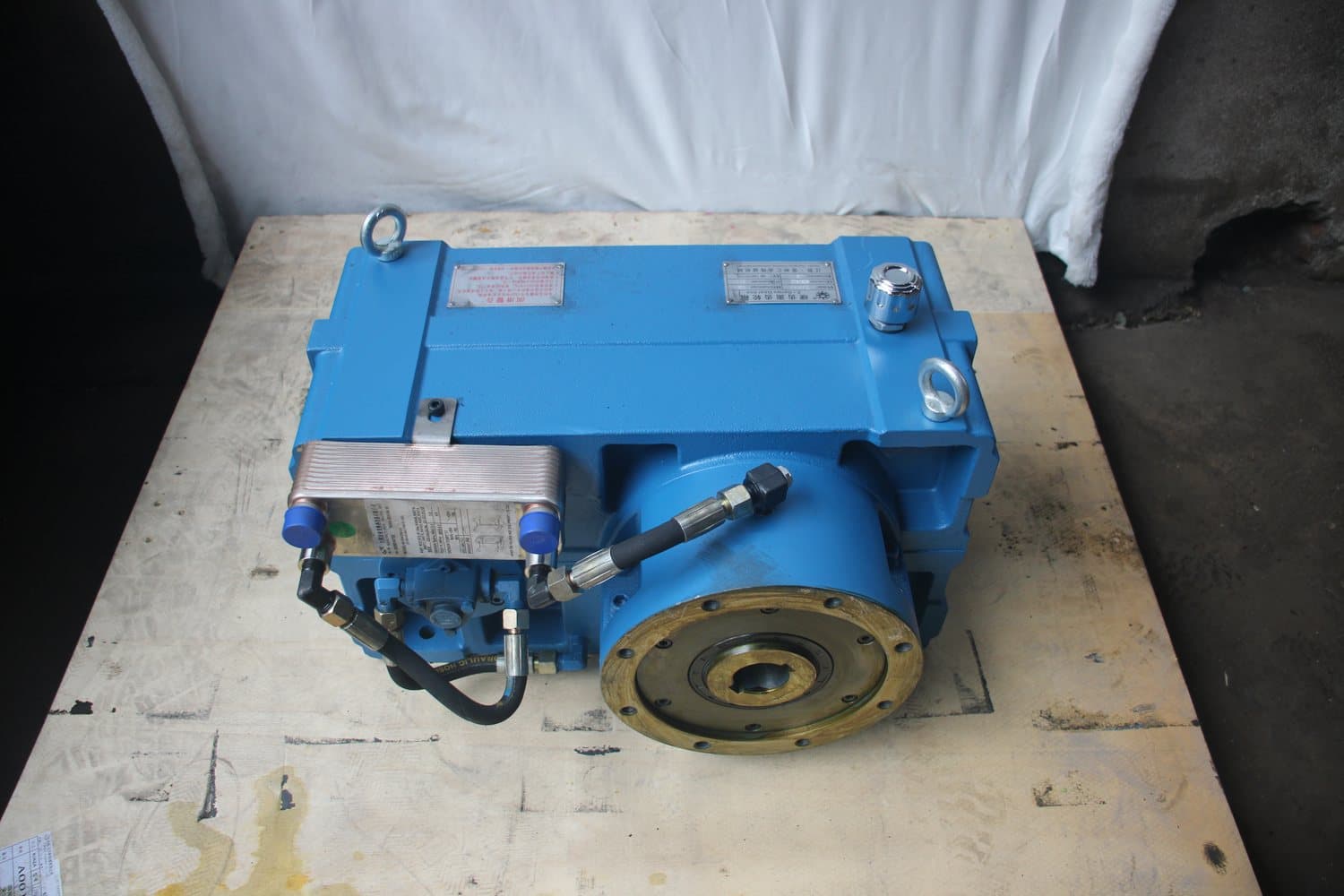

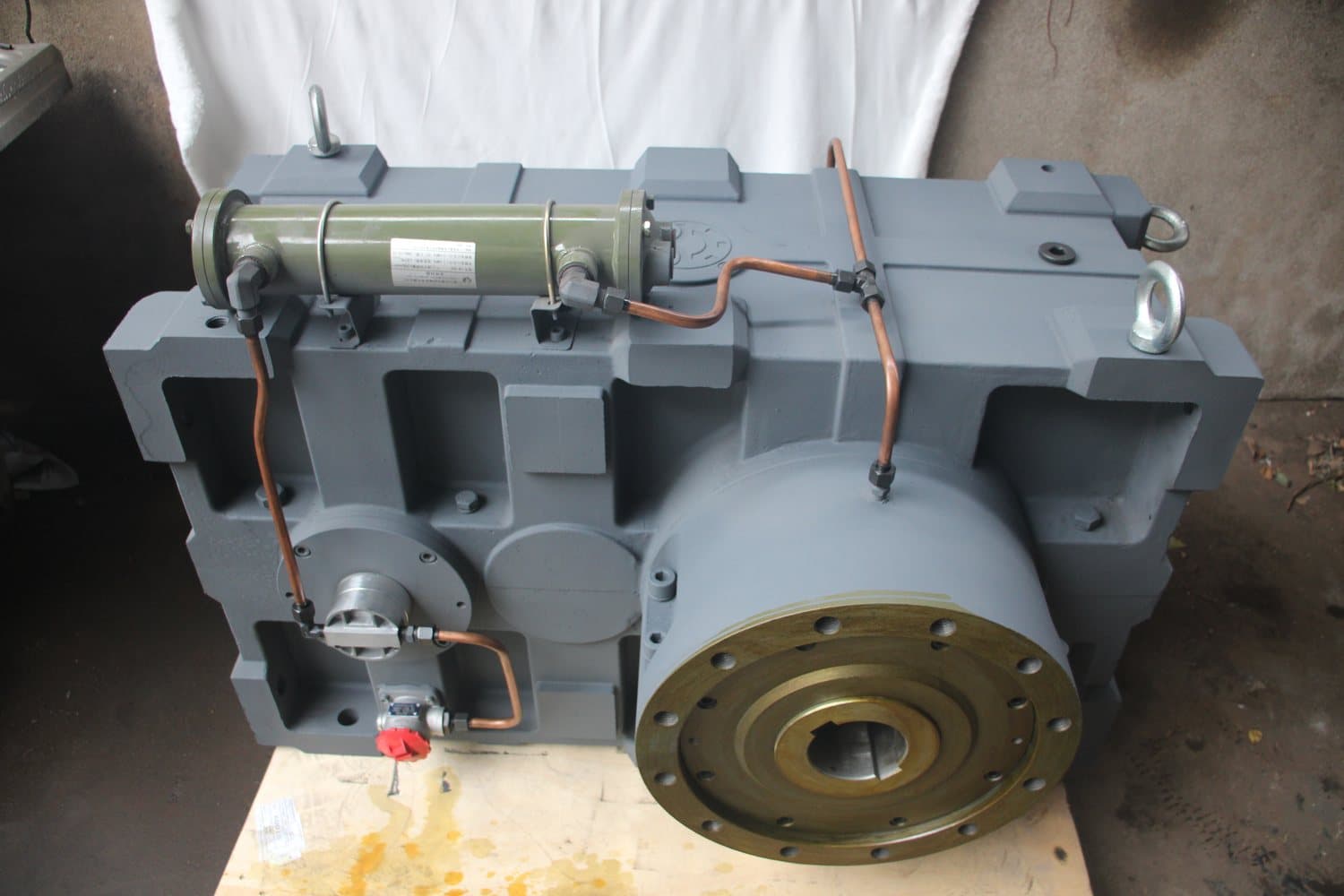

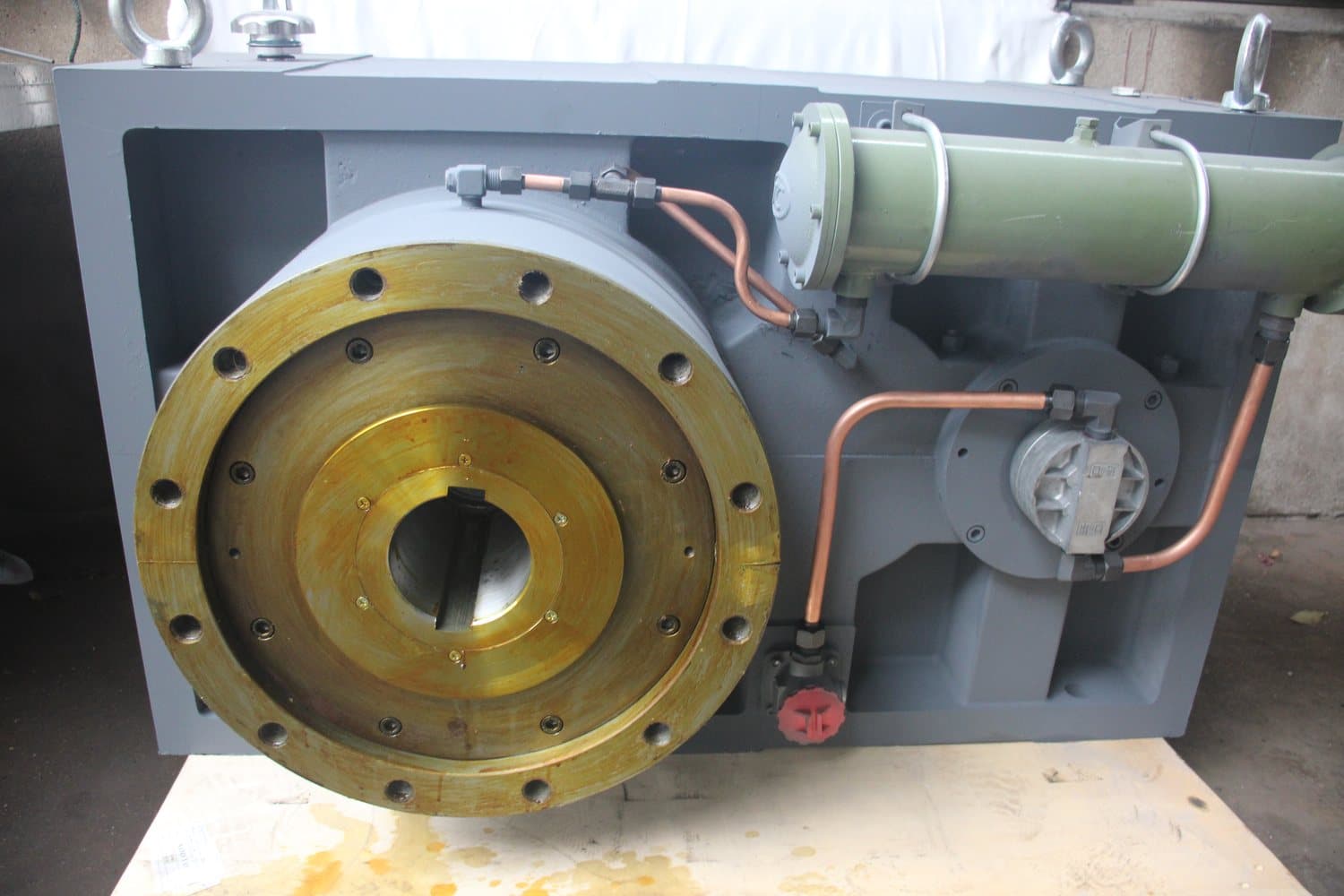

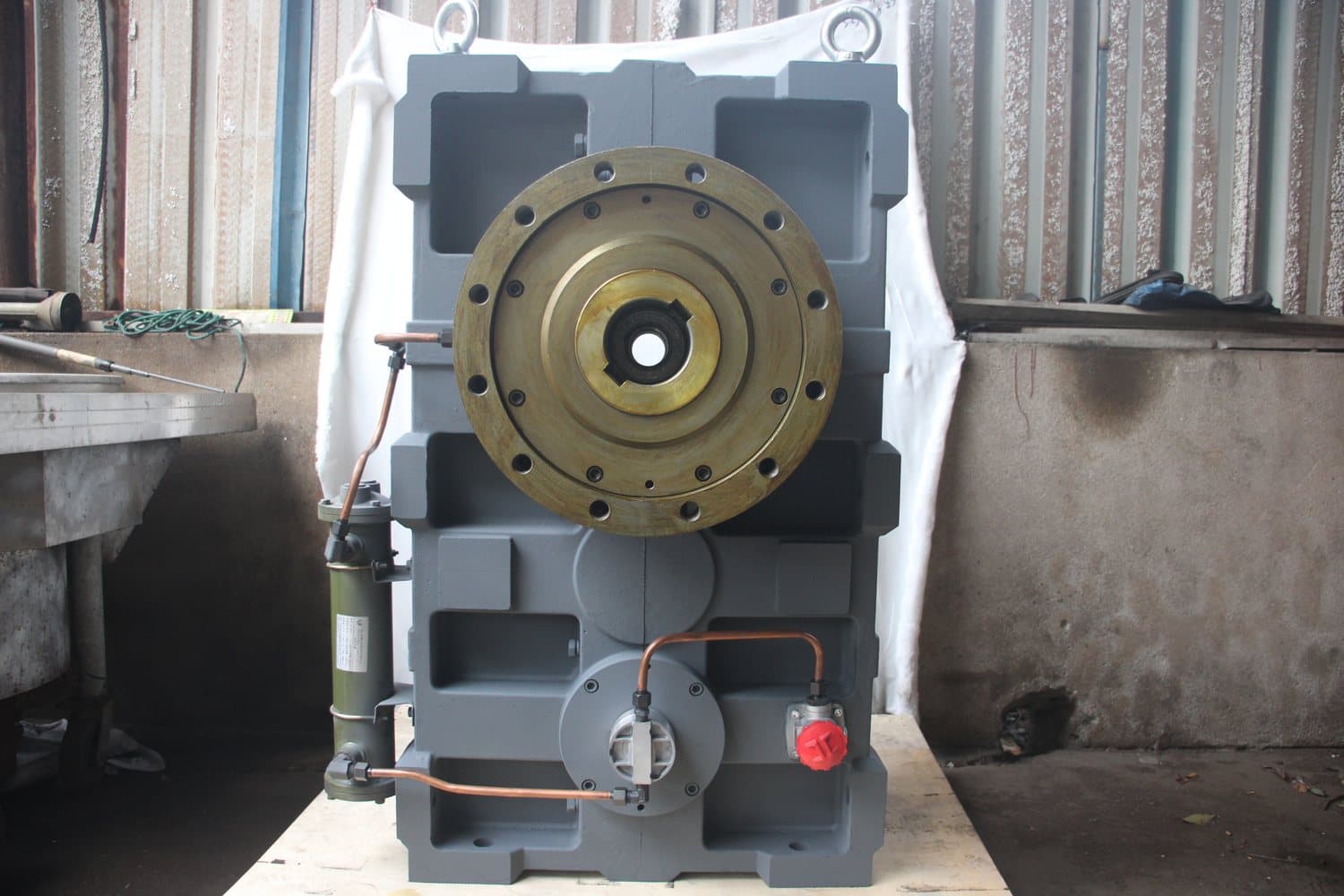

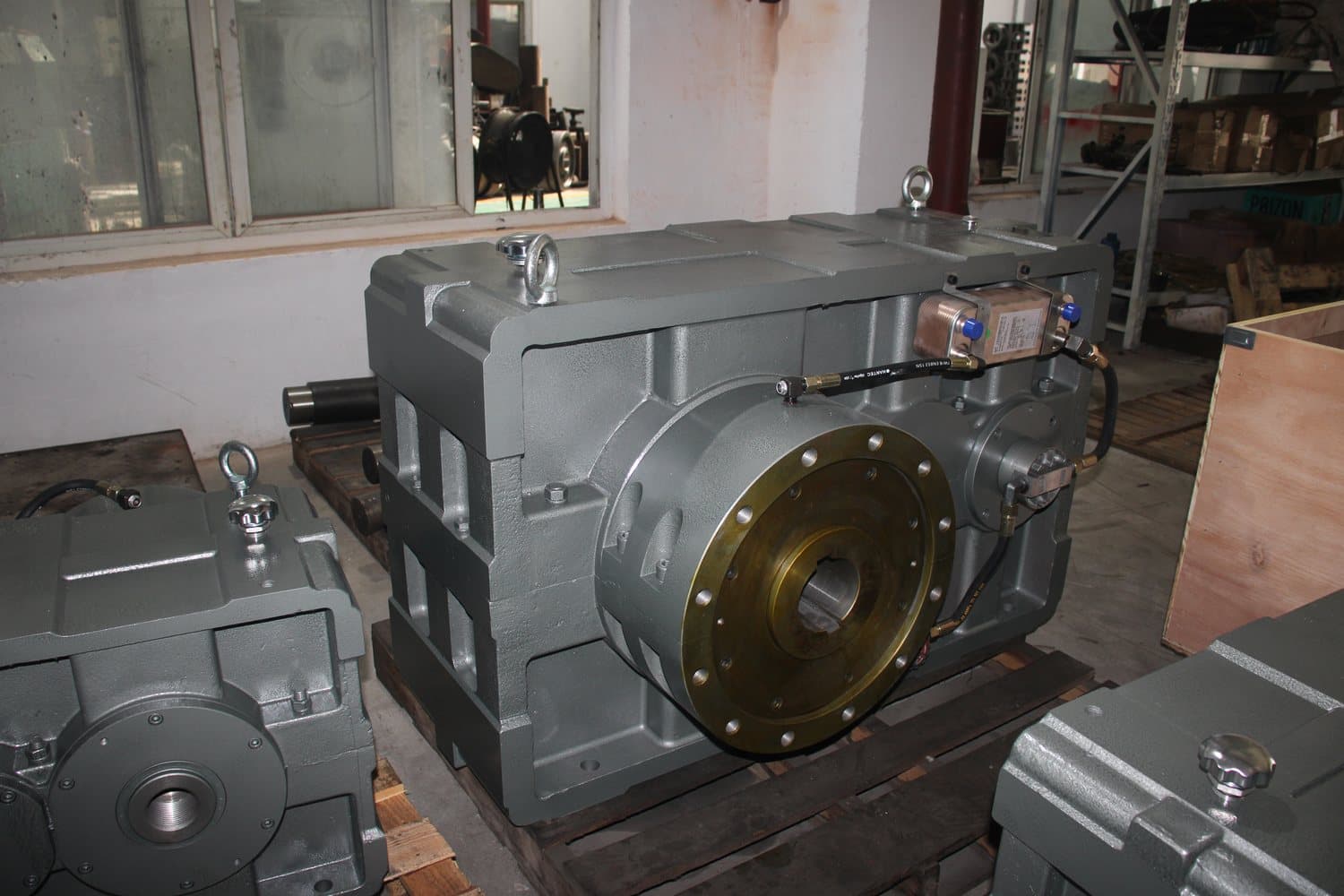

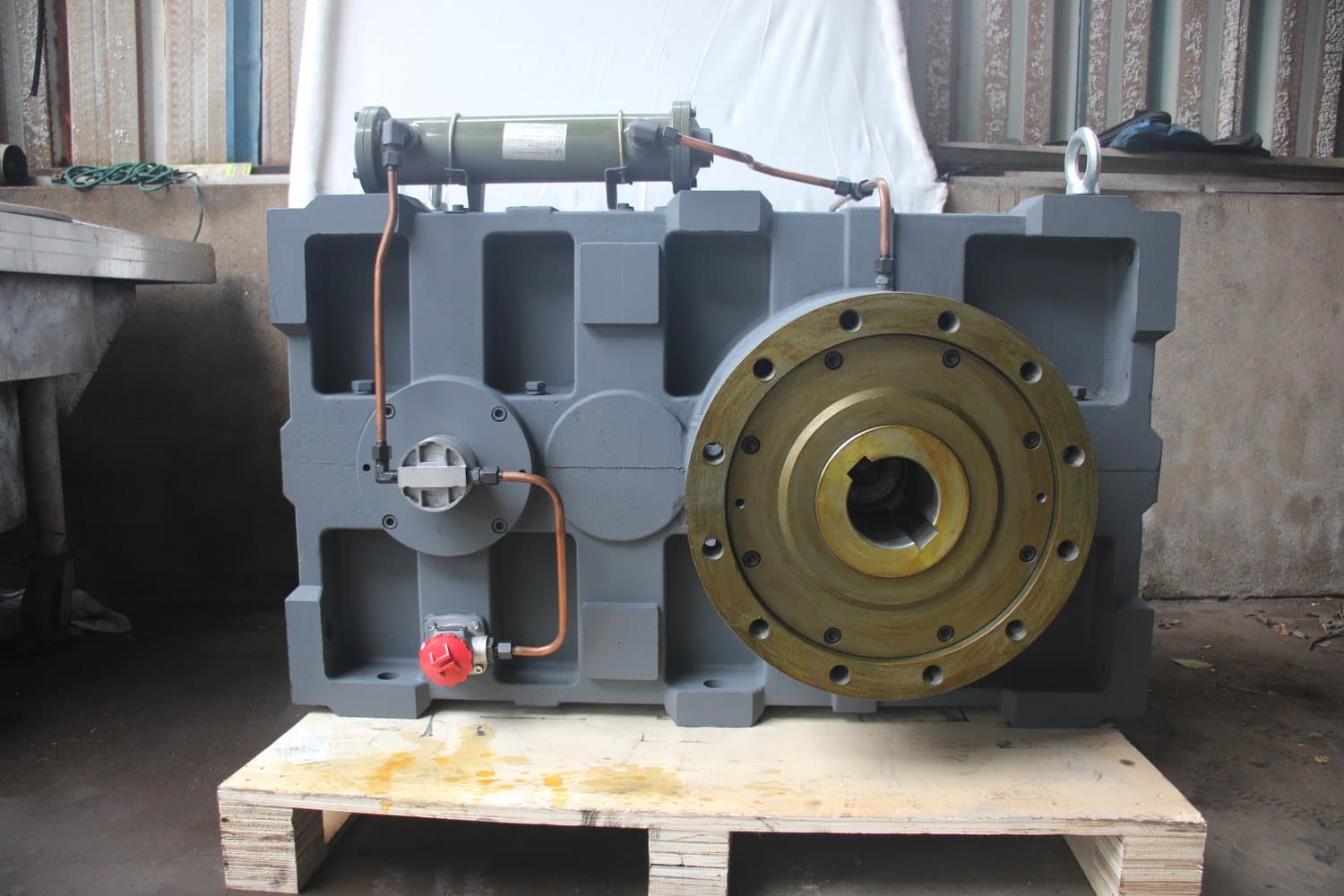

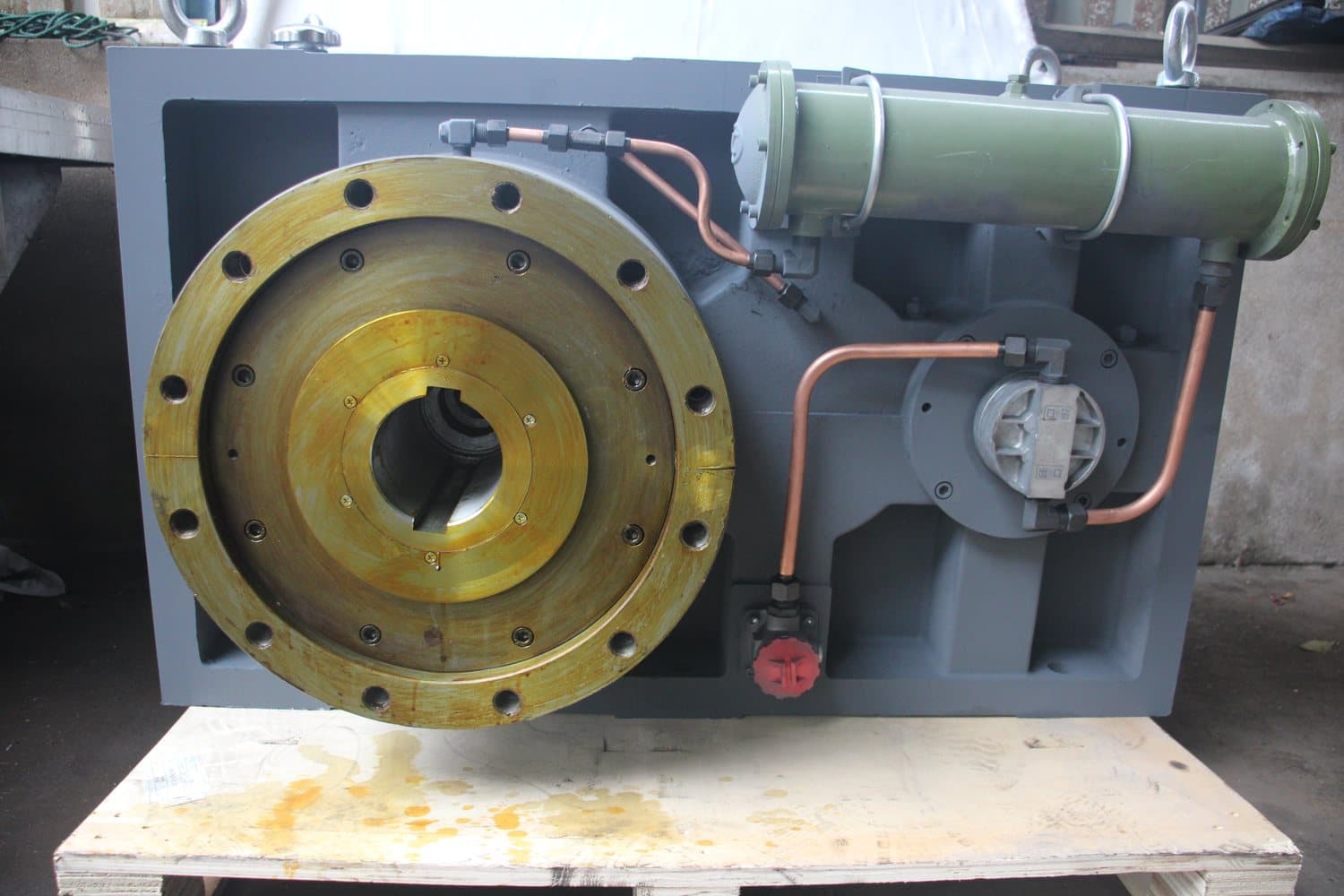

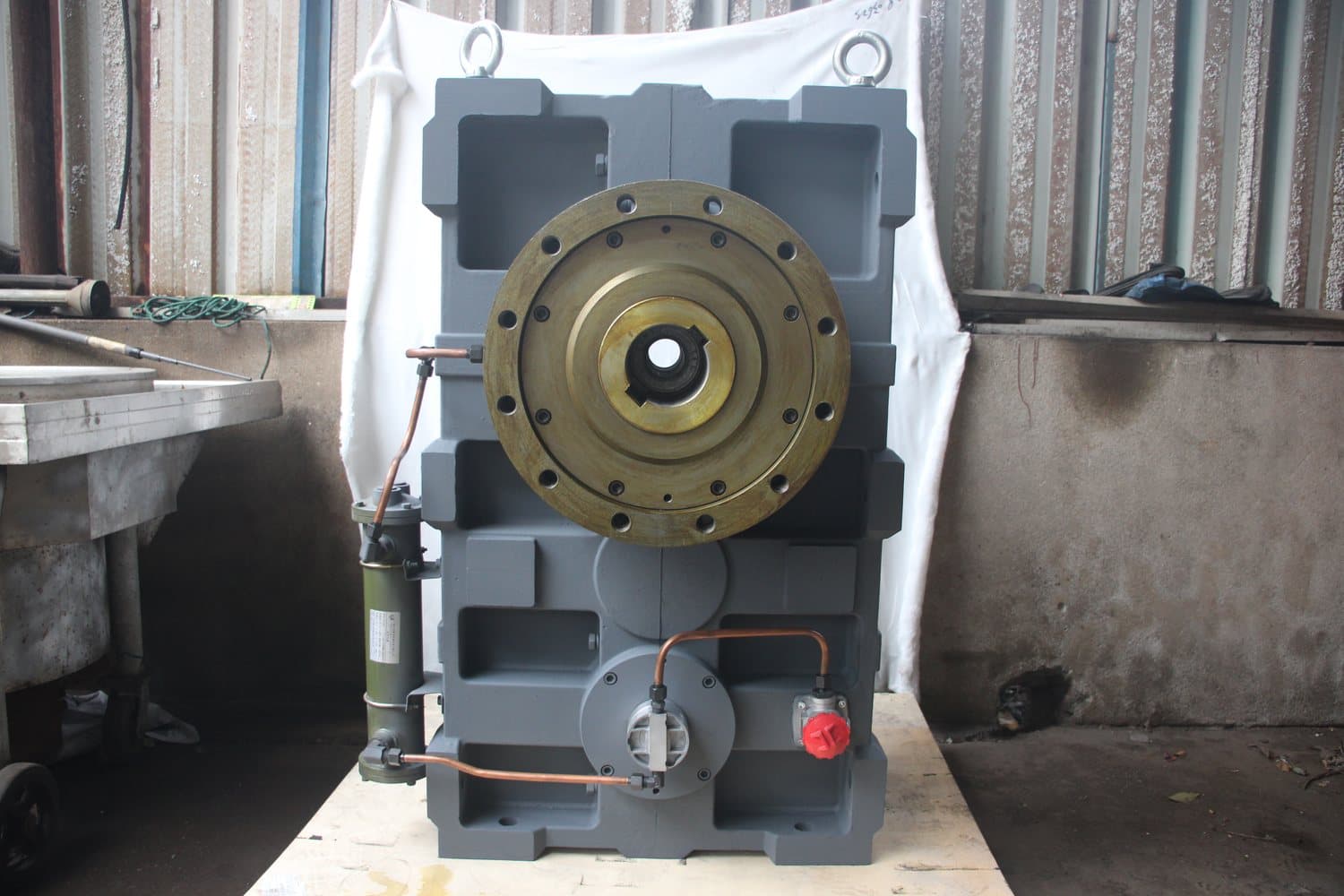

ZLYJ Series — single-screw extruder gearbox compatible with SPG and Toshiba Carbotech #1
